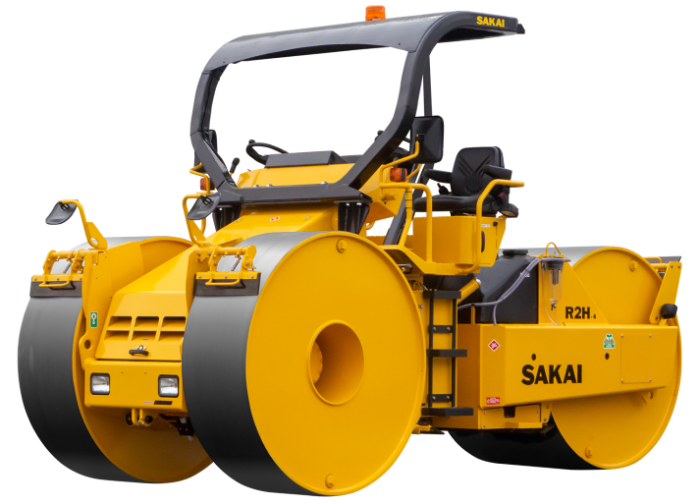

R2H-4 Three Wheel Static Roller

Features & Benefits:

• High 355 pli static roller
• Final Tier 4 Kubota engine
• Leaves super smooth finished asphalt surface
• Uniform force across 83″ width
• Chamfered drum edges
• Heavy-duty center hitch design
• Great side and curb clearance
• Triple-filtered spray system
• Front and rear lights
• Dual operator seats
• Standard safety features: ROPS, retractable seat belts, mirrors, turn signals, brake lights, hazard light switch, horn, backup alarm, electric parking brake w/ interlock, & foot brake

Specifications



DRUM
Front Drum Size (2) WxD	22X64 ins | 550X1620 mm
Rear Drum Size (1) WxD	43X64 ins | 1100X1620 mm
OPERATING
Weight	30,955 lbs | 14,040 kg
COMPACTION
Total Rolling width	83 ins | 2100 mm
Static Linear Pressure	355 pli | 625 N/cm
ENGINE
Make & Model	Kubota (Tier 4 Final) V3307-CR
Horsepower	73 Hp @ 2200 rpm | 54.6 kW @ 2200 min-1
BRAKING
Systems	Hydrostatic Service Brake + SAHR Parking Brake + Combined Footbrake
FLUIDS
Diesel Fuel Capacity	26.4 gal | 100 lit
Water Tank Capacity	179.6 gal | 680 lit

OPTIONS

• NEW! Guardman (Auto Brake Assist System)
• LED work lights
• LED strobe light / beacon
• LED light upgrade (in lieu of standard halogen)
• Cocoa mat
• Fire extinguisher
• Extended warranty: 5 years / 5,000 hours (powertrain & full available)
