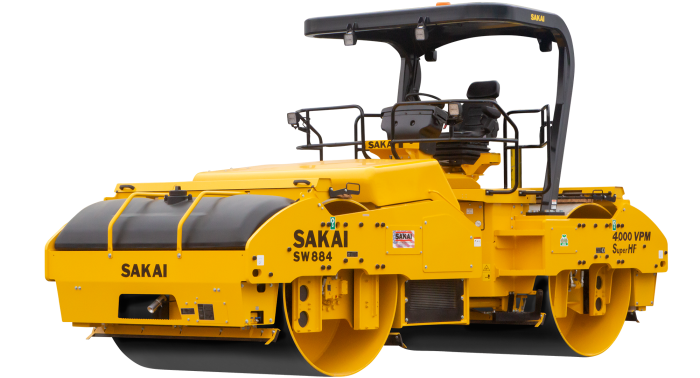

SW884 Tandem Asphalt Roller

Features & Benefits:

• 4000 VPM – 10 IPF @ 4.55 MPH
• Several amplitude and frequency settings/combinations per drum at operator’s station
• Counter-rotating eccentric weights
• All vibration controls at instrumental panel
• Chamfered drum edges
• 180 seat rotation
• Heavy-duty hitch design
• Durable rubber isolator system for vibratory drums
• Independent drum vibration
• Great side and curb clearance
• Triple filtered spray system
• Dual drum hydrostatic drive
• Increased drum wear-resistance thanks to alloy with 20% increase in hardness

Standard Safety Equipment

• ROPS
• Sakai proprietary emergency brake pedal which kills the engine and stops the machine instantly.
• 3 inch retractable seat belt
• 39 inches of visibility to the front and rear from the operators seat
• Low profile design for low center of gravity
• Operator deck guard rails
• Horn and backup alarm
• Electric parking brake w/ interlock

Specifications

DRUM
Size (w x d)	79 X 55 ins | 2000 X 1400 mm
OPERATING
Weight	28,415 lbs | 12,890 kg
VIBRATION
Frequency	2,500 -4,000 vpm | 41.7-66.7 Hz
Centrifugal Force	14,160-39,790 lbs | 63-177 kN
Nominal Amplitude	0.013″/.025 ” | 0.33/0.64 mm
ENGINE
Make & Model	Cummins QSF 3.8 T4 Final
Horsepower	130 HP | 97.0 kwe 2,200 rpm
BRAKING
Systems	Hydrostatic Service Brake + SAHR Parking Brake + Combined Footbrake

OPTIONS

• • LED strobe light / beacon
  • LED light upgrade (in lieu of standard LEDs)
  • LED work lights kit (ROPS mounted)
  • LED mat / drum lights
  • Cab with Air Conditioning
  • Mirror kit (included with Cab)
  • Low profile ROPS (total height 122″ vs 128 3/4″)
  • Cocoa mat kit
  • Mat temperature sensor w/ display screen
  • Fire extinguisher
  • Panel light
  • Idle shutdown
  • Extended warranty: 5 years / 5,000 hours (powertrain & full available)
