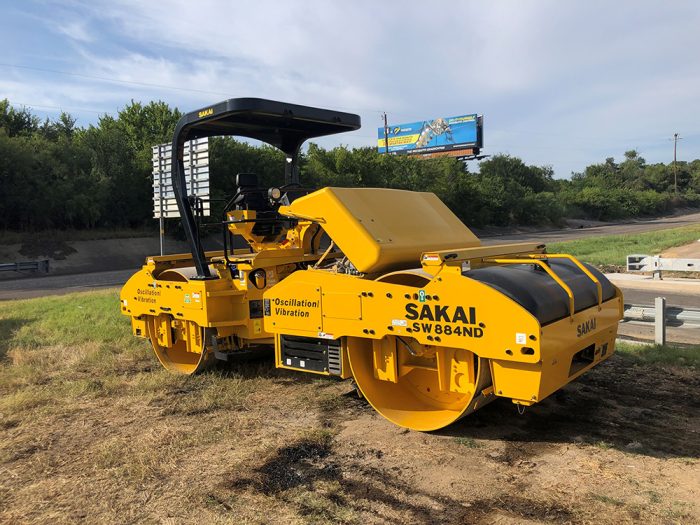

SW884ND Oscillating Asphalt Roller

Features & Benefits:

• 3,000 VPM – 10 IPF @ 4.55 MPH
• Several amplitude and frequency settings/combinations per drum at operator’s station
• Counter-rotating eccentric weights
• All vibration controls at instrumental panel
• Chamfered drum edges
• 180 seat rotation
• Heavy-duty hitch design
• Durable rubber isolator system for vibratory drums
• Independent drum vibration
• Great side and curb clearance
• Triple filtered spray system
• Dual drum hydrostatic drive
• Increased drum wear-resistance thanks to alloy with 20% increase in hardness

Standard Safety Equipment

• ROPS
• Sakai proprietary emergency brake pedal which kills the engine and stops the machine instantly.
• 3 inch retractable seat belt
• 39 inches of visibility to the front and rear from the operators seat
• Low profile design for low center of gravity
• Operator deck guard rails
• Horn and backup alarm
• Electric parking brake w/ interlock

Specifications

DRUM
Size (w x d)	79 X 55 ins | 2000 X 1370 mm
OPERATING
Weight	29,165 lbs | 13,230 kg
OSCILLATION
Frequency	2,800 vpm | 46.7 Hz
Centrifugal Force	38,600 lbs | 172 kN
Normal Amplitude	0.024″ | 0.60 mm
VIBRATION
Frequency	3,000 vpm | 50 Hz
Centrifugal Force	35,585 lbs | 158 kN
Nominal Amplitude	0.022 ” | 0.55 mm
ENGINE
Make & Model	Cummins QSF 3.8 T4 Final
Horsepower	130 HP | 97.0 kw @ 2,200 rpm
BRAKING
Systems	Hydrostatic Service Brake + SAHR Parking Brake + Combined Footbrake

OPTIONS

• LED strobe light / beacon
• LED light upgrade (in lieu of standard LEDs)
• LED work lights kit (ROPS mounted)
• LED mat / drum lights
• Cab with Air Conditioning
• Mirror kit (included with Cab)
• Low profile ROPS (total height 122″ vs 128 3/4″)
• Cocoa mat kit
• Mat temperature sensor w/ display screen
• Fire extinguisher
• Panel light
• Idle shutdown
• Extended warranty: 5 years / 5,000 hours (powertrain & full available)
