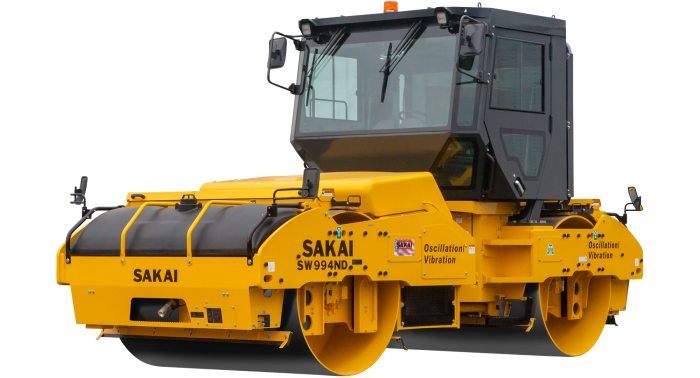

Sakai SW994ND highway class 84" vibratory and oscillatory tandem asphalt roller with enclosed cab and mirror kit.

RELIABLE. EASY-TO-USE. DURABLE.

  • 84"
  • 29,960 lbs
  • 130 HP Cummins

Oscillatory/Vibratory Tandem Rollers

Efficient compaction with various vibratory modes

Best Compaction Quality and Efficiency

  • Sakai’s new ECO Compaction Mode (ECM) reduces fuel consumption up to 10%.
  • SW994 standard model features 4,000vpm high frequency vibration, which achieves the desired density faster and more efficiently while creating a smoother finish.
  • EXACT COMPACT METER matches speed for obtaining the correct number of IPF (impacts per foot)
  • Frequency and amplitude modes can be switched from the seat
  • Cross-mounted drive and vibration motors eliminate machine torque on the mat
  • Counter rotation of eccentric weights in the drums cancel horizontal force
  • Timer, auto or constant operated water spray system

Dual Drum Oscillation “Osc” & Vibration “Vibe” (SW994ND)

  • Versatility by switching on the fly from Vibe for high compaction efforts to Osc for smooth finish of the pavement surface
  • Optimized dual drum Osc achieves target density of thin lift pavement (1-1.5”) in fewer passes and increases paving train speed
  • Osc achieves density on no-vibe jobs where structural integrity is a concern

Operator Comfort

  • Multi-position operator station (MPOS) (5 positions)
  • 180◦ easy rotating operator console
  • Lunch box table and cup holder
  • Excellent drum edge visibility from the operator seat
  • Digital programmable cruise control

Standard Safety Equipment

  • ROPS
  • Sakai proprietary emergency brake pedal which kills the engine and stops the machine instantly.
  • 3 inch retractable seat belt
  • 39 inches of visibility to the front and rear from the operators seat
  • Low profile design for low center of gravity
  • Operator deck guard rails
  • Horn and backup alarm
  • Electric parking brake w/ interlock

Easy Maintenance

  • Sprinkler system with plastic water tanks, triple-filtration, removable brass nozzles for ease of maintenance with pressurized winterization
  • Easy ground level access to all check points
  • Ground level access to all consumable items, such as filters
  • Long life drum isolators
  • Gear drive Osc/Vibe system (no belts)
  • Increased drum wear-resistance thanks to alloy with 20% increase in hardness

Specifications



DRUM
Size (w x d) 84″ x 55″ | 2,130 x 1,370 mm
OPERATING
Weight 29,960 lbs | 13,590 kg
OSCILLATION
Frequency 2,800 vpm | 46.7 Hz
Centrifugal Force 38,600 lbs | 172 kN
Normal Amplitude 0.022″ | 0.56 mm
VIBRATION
Frequency 3,000 vpm | 50 Hz
Centrifugal Force 35,585 lbs | 158 kN
Nominal Amplitude 0.021 ” | 0.54 mm
ENGINE
Make & Model Cummins QSF 3.8 T4 Final
Horsepower 130 HP | 97.0 kW @ 2,200 rpm
BRAKING
Systems Hydrostatic Service Brake + SAHR Parking Brake + Combined Footbrake
FLUIDS
Diesel Fuel Capacity 77.1 gal | 292 lit
Water Tank Capacity 2x 158.5 gal | 2x 600 lit

OPTIONS
